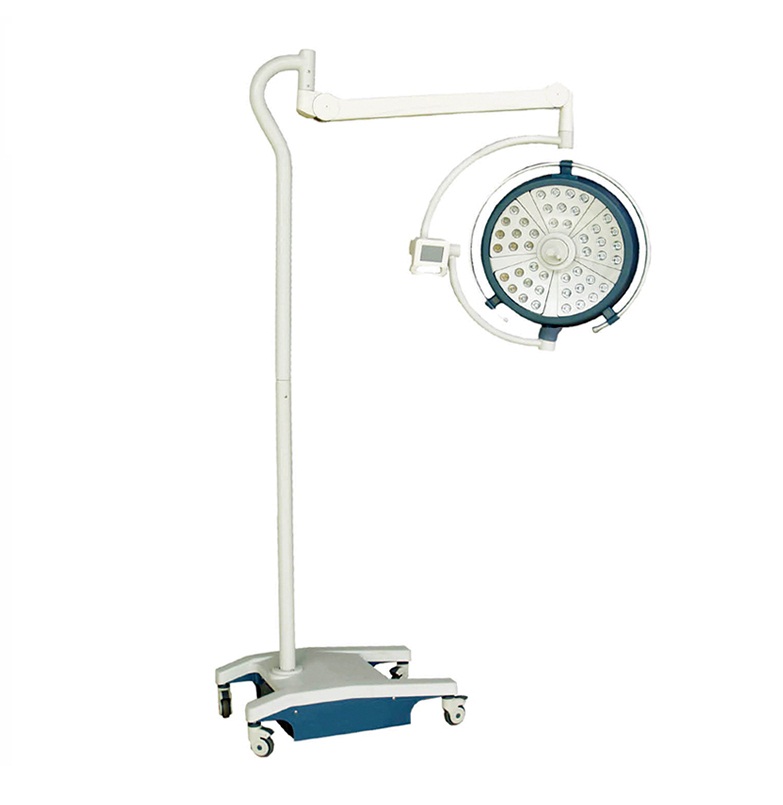

Portable operating Room light LED shadowless operating lamp

       Portable operating Room light LED shadowless operating lamp

WITH SQUARE ARM

MODEL: 500D

• Utilizing the most advanced LED technology available.
• The MT-medical LED70 series of operating theatre lights have been designed to provide a high quality, shadowless beam with extremely low running costs.
• The new, slim, fully enclosed head with colour touchscreen digital controls is a perfect LED lighting solution complementing all surgical room.
• LEDs light emitting diodes) have been around for a long time. Recently this technology has become leading-edge in the field of lighting – a breakthrough technological solution to the inherent problems of the incandescent light bulb.
• We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life

Streamlined, ultra-thin, enclosed head with reduced air resistance to minimise contamination





Automatic focus Optional Electrical or Manual focus system) Warm and Cold light source Osram LED bulbs)





Germany Ondal Light arm with 360°rotation LCD tourch screen pannel or optional manual control panel





Optional Sony camera system,There are insterted camera in central of light head and fixed in third light arm for choice





Aluminium alloy cover : easily heat dissipation



Technical Parameters	700mm head    and  500mm head
Illuminance	160000/140000Lux.
Color temperature	3500K-5500K ± 500)
Ultraviolet light irradiance within40nm wave	0.002W/M2
Light Focus adjustment System	manual or electric or auto focus Optional)
Light-adjusting mode	continuous adjusting light , no grade dimmer system
50% Spot Diameter D50)	280 mm / 230 mm
50% Spot Diameter D50)	150mm/120mm
Terperature at surgeon’s head	≤ 2°C
CRI RA	95 R9 :90 R13 :92
Input Power	85W / 65W
the adjusting range of Illumination%	25~100
Input power	220W
Power of bulb W)	1W * 60N / 1W *45N
Bulb average life	50000h
